Native-feature and global-dependency primarily based software put on prediction utilizing deep studying

On this part, an experiment was designed to check the performances of our proposed LFGD-TWP methodology.

Introduction of experimental knowledge

The machining experiment was carried out in milling operation and the experimental tools and supplies used on this experiment are proven in Desk 1. The chopping power acquisition system primarily consists of sensor, transmitter, receiver and PC. The sensor and sign transmitter are built-in right into a toolholder, which might straight gather the power knowledge throughout machining and ship it out wirelessly. The indicators are collected at a frequency of 2500 Hz. The collected knowledge from sensor is transmitted wirelessly to receiver, which in flip transmits the info to PC by way of USB cable. The sign assortment course of is proven in Fig. 6.

Desk 1 Experimental tools and supplies.
Determine 6
figure 6

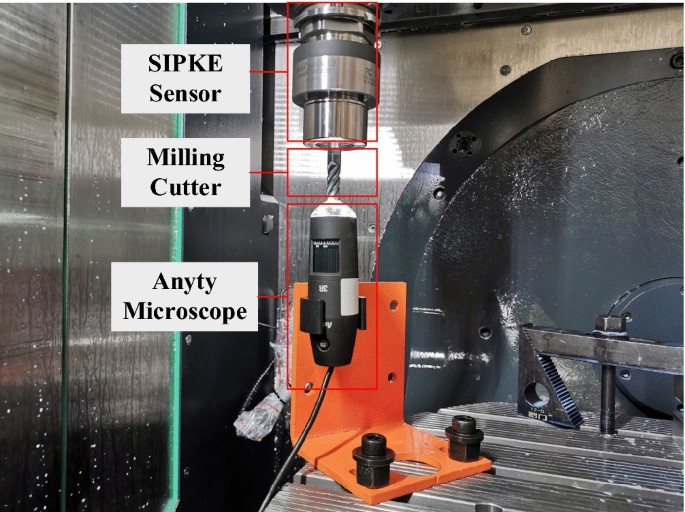

The Anyty microscope was fastened contained in the machine software as proven in Fig. 7. The coordinate the place picture of software put on might be clearly taken is recorded into the CNC in order that the spindle can transfer to this fastened place for put on measurement after every milling. This measurement methodology avoids the errors brought on by repeated elimination and set up of cutters, which improves the effectivity and accuracy of software put on measurement. A pattern photograph of the microscope is proven in Fig. 8.

Determine 7
figure 7
Determine 8
figure 8

A pattern photograph of software put on.

Orthogonal experimental methodology was adopted on this paper with the intention to check the performances of our methodology below a number of working situations. Instrument put on experiments are performed utilizing 9 cutters below 9 completely different chopping parameters. The 9 cutters are marked as C1, C2,…, C9. The milling parameters have been set as proven in Desk 2. The chopping width was fastened at 7 mm. Every row within the desk corresponds to a brand new cutter. Each 1000 mm chopping was a reduce and the software put on was measured after each reduce. Exchange the cutter and chopping parameters when the earlier software put on exceeds the edge or the cutter is damaged.

Desk 2 Parameter setting.

The information acquisition information have three columns, equivalent to: bending second in two instructions (x, y) and torsion. Every cutter has a corresponding put on file. The wear and tear file data the damage values of the 4 flutes corresponding to every reduce. The chopping high quality will change into poor if the damage worth of any edge exceeds a sure worth. Subsequently, this paper takes the maximal flank put on of all flutes as goal.

Outcomes and dialogue

Information preparation

Contemplating the multisensory enter comprise three channels, the bending second in X route is used for instance as an example the info preparation course of on this paper. Firstly, the unique sign of every reduce is truncated to acquire the legitimate knowledge phase containing 10,240 recorded values within the center a part of every sign. Lastly, the info is equally divided into 10 segments primarily based on follow, denoted as (X_{fx} = left[ {X_{1} ,X_{2} ,…,X_{10} } right]).

Native time collection knowledge conversion

The utmost stage of decomposition in DWT is said to the size of indicators and the chosen wavelet. On this paper, db5 is used for decomposition and we choose the optimum stage of decomposition by evaluating the efficiency below completely different ranges of decomposition. Decomposition stage 3, 4, 5 and 6 have been chosen for comparability on this paper. The outcomes confirmed that stage 5 had one of the best efficiency. Subsequently,(X_{1} ,X_{2} ,…,X_{10}) are transformed to multi-scale spectrogram pictures respectively by 5-level wavelet decomposition utilizing db5 primarily based on the follow, denoted as (WS = [ws_{1} ,ws_{2} ,…,ws_{10} ]) the place (ws = [c_{1} ,c_{2} ,…,c_{6} ]) with the size of [512, 256, 128, 64, 32, 32] is multi-scale vectors corresponding to every phase.

Native time collection characteristic extraction

For every phase, 1D-CNNs are used to extract single-scale options from (c_{1} ,c_{2} ,…,c_{6}) respectively. The construction and parameters of the mannequin are proven in Desk 3.

Desk 3 Construction and parameters of single-scale characteristic extraction mannequin.

The activation operate of the convolution layer is ReLU. Each convolution layer of (c_{1} ,c_{2} ,c_{3} ,c_{4}) is adopted by a max-pooling layer with area 1 × 2 to compress generated characteristic maps. The enter channel of the mannequin is ready to three due to the three-channel sensory knowledge.

After the single-scale Function Extraction by 1D-CNNs and the concatenation of single-scale Options, a characteristic picture of measurement ({32} instances {6} instances 32) is obtained, which is used because the enter of our multi-scale correlation characteristic extraction mannequin. Lastly, the native characteristic measurement of every phase after computerized extraction is 1 × 50.

World time collection dependency mining

On this case, the dimension of computerized characteristic vector is 50, and the dimension of guide characteristic vector is 30. The adopted guide options are proven in Desk 4. Subsequently, the dimension of the hybrid options of every phase is 80.

Desk 4 Handbook options for software put on prediction.

The variety of segments is T = 10 in order that the form of the enter sequence of World Time Sequence Dependency Mining Mannequin is 80 × 10. The Imply Squared Error (MSE) was chosen because the mannequin loss throughout mannequin coaching. An Adam optimizer32 is used for optimization on this paper and the training price is ready to be 0.001. MSE was calculated on check knowledge set for the fashions having one, two, and three layers and 100, 200, 300, 400, 500 hidden models. The outcomes present that probably the most correct mannequin contained 2 layers and 300 hidden models in LSTM fashions and 400 hidden models in FC-Layer. In an effort to enhance the coaching pace and alleviate the overfitting points, we apply batch normalization (BN)33 to all convolution layers of Single-Scale Function Extraction Mannequin, and apply the dropout methodology34 to the absolutely related layer. To get a comparatively optimum dropout worth, we set completely different values to coach the mannequin, i.e., p = 0, p = 0.25, p = 0.5, p = 0.75. The place p is the likelihood of a component to be zeroed. The outcomes present that the dropout setting of 0.5 provides a comparatively optimum end result. After updating the parameters of the mannequin with the coaching knowledge, the educated mannequin is utilized on the testing knowledge to foretell software put on.

In an effort to quantify the efficiency of our methodology, imply absolute error (MAE) and root imply squared error (RMSE) are adopted as measurement indicators to judge regression loss. The equations of MAE and RMSE over n testing data are given as follows:

$$ MAE = frac{1}{n}sumlimits_{i = 1}^{n} {left| {y_{i} – hat{y}_{i} } proper|} , $$

(5)

$$ RMSE = sqrt {frac{1}{n}sumlimits_{i = 1}^{n} {(y_{i} – hat{y}_{i} )^{2} } } , $$

(6)

the place (y_{i}) is predicted worth and (hat{y}_{i}) is true worth.

To investigate the efficiency of all our strategies, cross validation is used to check the accuracy of the mannequin on this paper. Eight cutter data are used as coaching units and the remainder one is used as testing set, till all cutters are used as testing set. For instance, data of cutters C2, C3, …, C9 are used because the coaching units and data of cutter C1 are used because the testing set, the testing case is denoted as T1. Then the data of cutter C2 are used because the testing set, and the data of the remainder cutter are used because the coaching units, the testing case is denoted as T2. The remainder might be finished in the identical method. 9 completely different testing instances are proven in Desk 5.

To mitigate the consequences of random components, every testing case is repeated 10 instances and the typical worth is used as the results of the mannequin. Furthermore, with the intention to display the effectiveness of the hybrid options on this paper, two fashions are educated, particularly the community with hybrid options and the community with computerized options solely. The outcomes of every testing instances are proven in Desk 6.

Desk 6 Measurement indicator (MAE and RMSE) achieved by LFGD-TWP.

It may be seen from Desk 6 that our proposed LFGD-TWP achieves low regression error. Typically, the mannequin with hybrid options performs higher than the mannequin with computerized options solely. By calculating the typical efficiency enchancment, we will attain a 3.69% enchancment in MAE and a 2.37% enchancment in RMSE. To qualitatively display the effectiveness of our mannequin, the expected software wears of testing case T2 and T7 are illustrated in Fig. 9. It may be seen from Fig. 9 that the nearer to the software failure zone, the better the error. The rationale for this can be that the software wears faster at this stage, leading to a comparatively small variety of samples. Or it might be that the sign modifications extra drastically and the noise is extra extreme as a result of rising software put on, resulting in better error.

Determine 9
figure 9

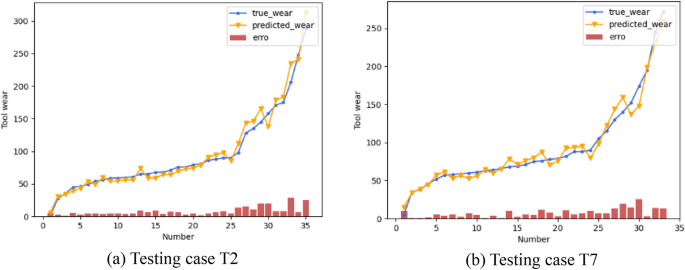

Instrument put on predicted by LFGD-TWP.

Two statistics are adopted as an example the general prediction efficiency and generalization capability of the mannequin below completely different testing instances: imply and variance. Imply is the typical worth of the outcomes below completely different testing instances. Clearly, it signifies the prediction accuracy of the strategy. Variance measures how far every result’s from the imply and thus measures variability from the typical or imply. It signifies the steadiness of generalization below completely different testing instances. The equations of imply and variance of two measurement indicators over n testing instances are given as follows:

$$ Imply = overline{r} = frac{1}{n}sumlimits_{i = 1}^{n} {r_{i} } , $$

(7)

$$ Variance = frac{1}{n}sumlimits_{i = 1}^{n} {left( {r_{i} – overline{r}} proper)^{2} } , $$

(8)

the place (r_{i}) is the imply worth of the outcomes for every testing case.

The definition of imply and variance reveals that the smaller their values are, the higher efficiency of the mannequin will probably be. In our proposed methodology, the technique of MAEs and RMSEs are 7.36 and 9.65, and the variances of MAEs and RMSEs are 0.95 and 1.65.

Additional comparability

Different deep studying fashions are used to check mannequin efficiency with the proposed LFGD-TWP. They’re CNN24, and LSTM30 and CNN-BiLSTM19, and the construction of those fashions are proven as follows.

Construction of CNN mannequin briefly: The enter of CNN mannequin is the unique sign after normalization, and the sign size is 1024. The enter channel of the mannequin is ready to three due to the three-channel sensory knowledge. CNN mannequin has 5 convolution layers. Every convolutional layer has 32 characteristic maps and 1 × 4 filters which is adopted by a max-pooling with area 1 × 2. Then flatten the characteristic maps. Lastly, it’s adopted by a completely related layer, which has 250 hidden layer models. The dropout operation with likelihood 0.5 is utilized to the absolutely related layer. The loss operate is MSE, the optimizer operate is Adam, the training price is ready to be 0.001, that are stored the identical because the proposed mannequin. The technique of MAEs and RMSEs are 12.64 and 16.74, and the variances of MAEs and RMSEs are 10.74 and 18.90.

Construction of LSTM mannequin briefly: The mannequin is of kind many to at least one. The enter of LSTM is the guide options in Desk 4. Subsequently, an LSTM cell has an enter dimension of 30. The MAE and RMSE values have been calculated for fashions with one, two, and three layers and 100, 200, 300, 400 hidden models. Subsequently, 12 constructions of an LSTM mannequin have been constructed for probably the most correct mannequin. Additionally, the timesteps are 10, the loss operate is MSE, the optimizer operate is Adam, the training price is ready to be 0.001, that are stored the identical because the proposed mannequin. The outcomes present that probably the most correct mannequin contained 2 layers and 200 hidden models. The technique of MAEs and RMSEs are 10.48 and 13.76, and the variances of MAEs and RMSEs are 5.12 and 9.28.

Construction of CNN-BiLSTM mannequin is proven in Ref.19, and the enter of this mannequin is the unique sign after normalization. The technique of MAEs and RMSEs of this mannequin are 7.85 and 10.24, and the variances of MAEs and RMSEs are 2.71 and 5.06. Comparability outcomes of our methodology (LFGD-TWP) and widespread fashions are proven in Desk 7. In comparison with probably the most aggressive end result achieved by CNN-BiLSTM, the proposed mannequin achieves a greater accuracy owing to the multi-frequency-band evaluation construction. Additional, it may be seen that the proposed mannequin achieves decrease variances in MAE and RMSE. It signifies that the proposed mannequin has higher total prediction efficiency and higher stability of generalization below completely different testing instances by evaluating the variance of the outcomes.

Desk 7 Comparability outcomes.

To additional check the efficiency of our proposed methodology, we moreover use the PHM2010 knowledge set35, which is a extensively used benchmark. The machining experiment was carried out in milling operation and the experimental tools and supplies used on this experiment are proven in Ref.19. The operating pace of the spindle is 10,400 r/min; the feed price in x-direction is 1555 mm/min; the depth of reduce (radial) in y-direction is 0.125 mm; the depth of reduce (axial) in z-direction is 0.2 mm. There are 6 particular person cutter data named C1, C2,…, C6. Every document incorporates 315 samples (equivalent to 315 cuts), and the working situations stay unchanged. C1, C4, C6 every has a corresponding put on file. Subsequently, C1, C4, C6 are chosen as our coaching/testing dataset. Additionally, cross validation is used to check the accuracy of the mannequin and the outcomes are proven in Fig. 10.

Determine 10
figure 10

Instrument put on (PHM2010) predicted by LFGD-TWP.

In our proposed methodology, the imply of MAEs is 6.65, the imply of RMSEs is 8.42. In contrast with the imply worth of MAEs (6.57) and RMSEs (8.1) in Ref.19. The rationale for the marginally poor efficiency could also be that with the intention to improve the adaptability to a number of working situations, the structure of the mannequin is extra advanced, which results in overfitting. Though the proposed structure may overfit the PHM2010 case, the complexity of the structure ensures that extra advanced eventualities just like the check instances within the paper might be dealt with.
